Overview

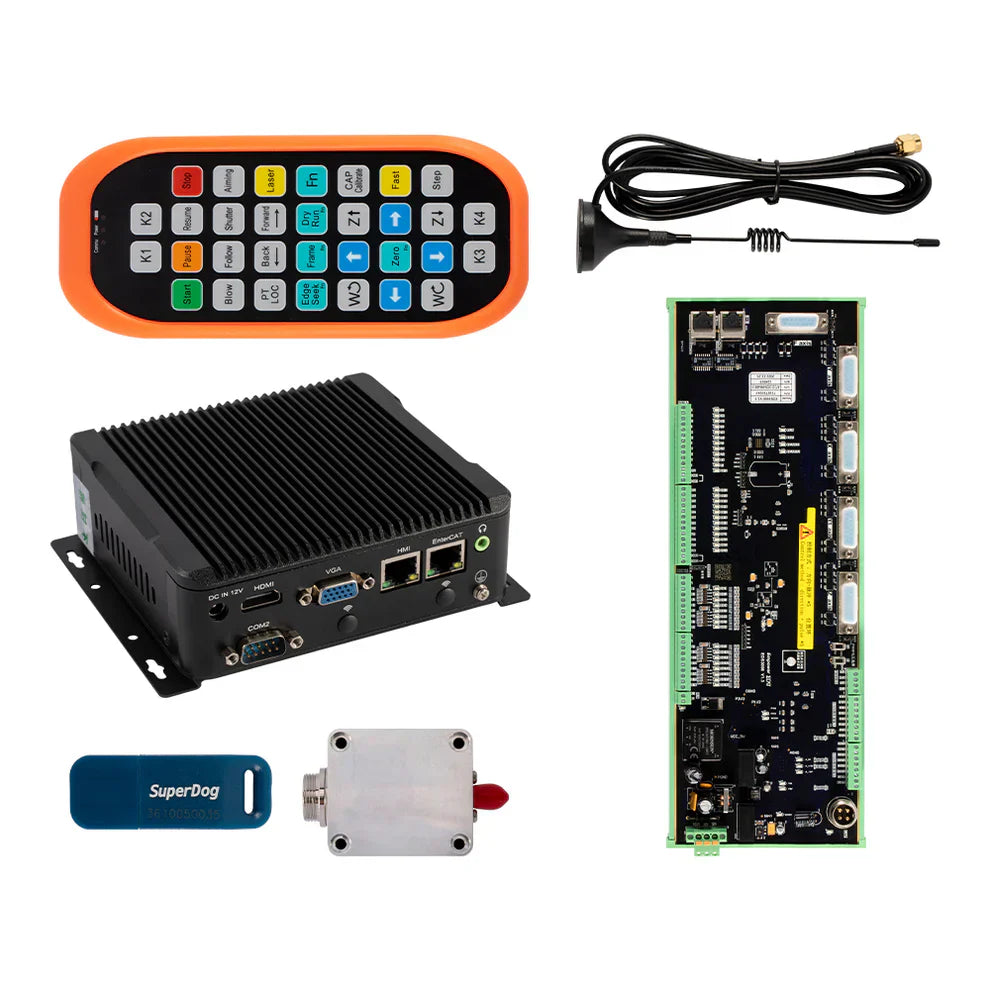

The RayTools XC3000S is a high-performance laser cutting control system designed for industrial-grade fiber laser applications. It is tailored for flat cutting tasks up to 30 kW and offers both EtherCAT (bus analog) and pulse analog options, giving flexibility for different setups.

Key Features & Advantages

1. Industrial-Grade CNC Software

  • Robust CNC platform for laser cutting.
  • Integrated process database and functional modules.
  • User-friendly interface for daily operations.

2. Communication Flexibility

  • EtherCAT (Bus Analog): High-speed, networked architecture, ideal for complex and large-scale systems.
  • Pulse Analog: Simple point-to-point wiring, easy to implement, suitable for smaller setups.

3. Ultra-Fast Motion Control

  • Real-time EtherCAT communication with 1 ms refresh cycles.
  • Precision metrics:
    • Path accuracy: 0.005 mm
    • Positioning: 0.001 mm
    • Repeatability: 0.002 mm
  • Performance: up to 3G acceleration, 80 mm/min cutting speed, and 250 m/min dry motion.

4. Smart Cutting Functions

  • Auto FindEdge for correcting angle deviations.
  • Supports pre-pierce, multi-level pierce, film cutting, micro-joint cutting, and compensation.
  • Includes obstacle avoidance, vibration suppression, and breakpoint resume.

5. Reliability & Maintenance

  • Continuous torque and alarm monitoring.
  • Automatic calibration and closed-loop arc detection.
  • Built-in alarm log for easy troubleshooting.

Technical Specifications

  • Operating Temperature: 0 °C to +80 °C
  • Pressure Range: 0.096–0.106 MPa
  • Humidity: up to 70% (non-condensing)
  • Power Supply: 24 V DC
  • I/O Capabilities:
    • 24 digital inputs
    • 16 digital outputs
    • 4 AD inputs (16-bit, ±10 V)
    • PWM outputs (0–30 kHz)
    • Extended I/O via EDS-2010 module

Applications

  • Flat-sheet fiber laser cutting.
  • Industrial sheet metal processing.
  • Advertising fabrication.
  • Retrofit and upgrade projects requiring high precision.

Conclusion

The RayTools XC3000S combines precision, automation, and flexibility in one control system. Whether you require a simple analog setup or a high-performance EtherCAT-driven system, the XC3000S delivers reliability and smart features for advanced fiber laser cutting.
